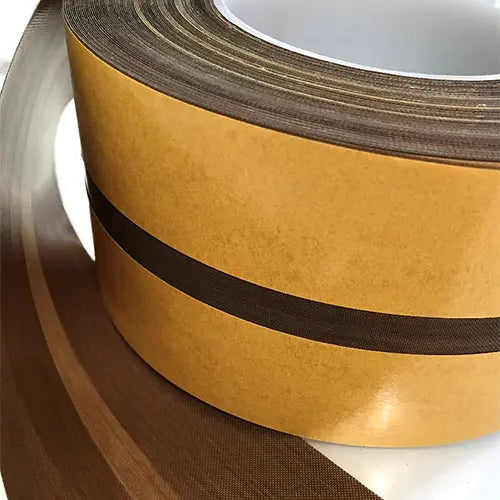

Teflon Adhesive Edged Zone Tape has custom sized strips of adhesive on the outer edges, leaving a non-adhesive free area in the middle.

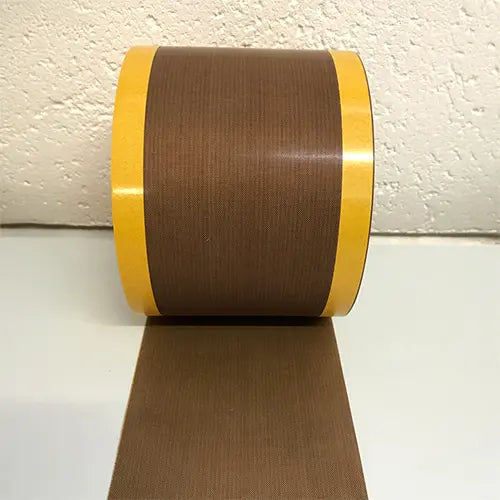

Zoned Teflon Tape is designed to leave a non-adhesive free area in the middle of the tape.

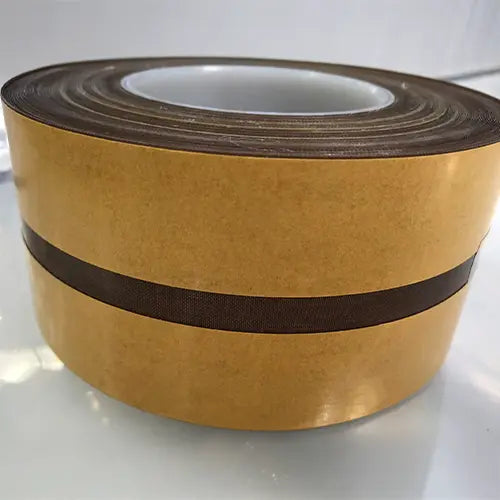

An example of wide adhesive zones with a small non-adhesive area in the middle of this roll of Adhesive Zoned PTFE "Teflon" Tape

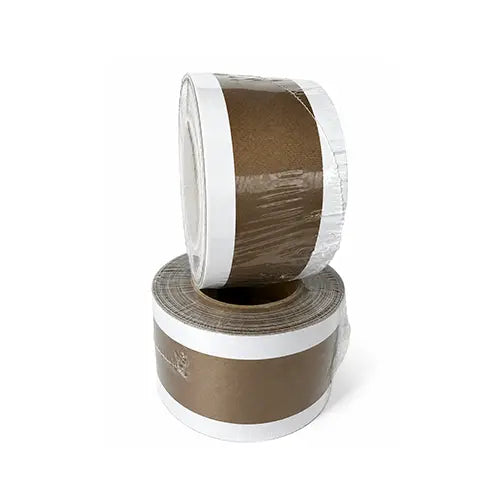

Contact Us for all YOUR adhesive zone Teflon - PTFE Tape Requirements

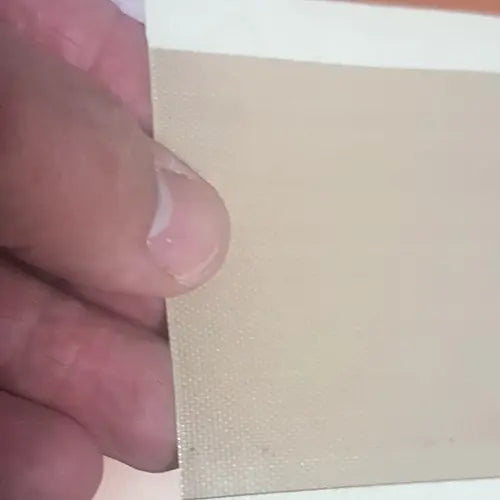

Teflon Adhesive Edged Zone Tape has custom sized strips of adhesive on the outer edges

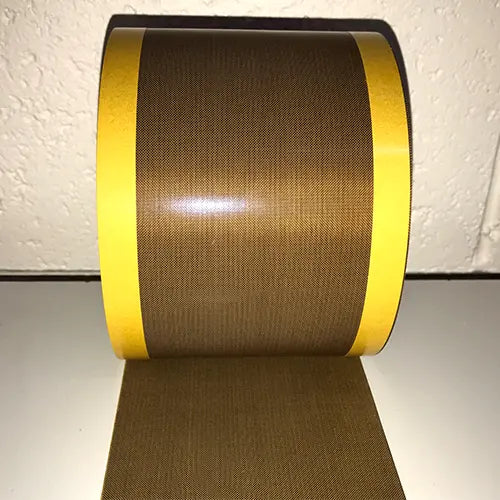

We supply Adhesive edged PTFE / Teflon Tape ( Zoned Teflon Tape) to Wollongong, Sydney, Brisbane, Melbourne, Newcastle, Canberra, Adelaide, Hobart, Perth & right across Australia

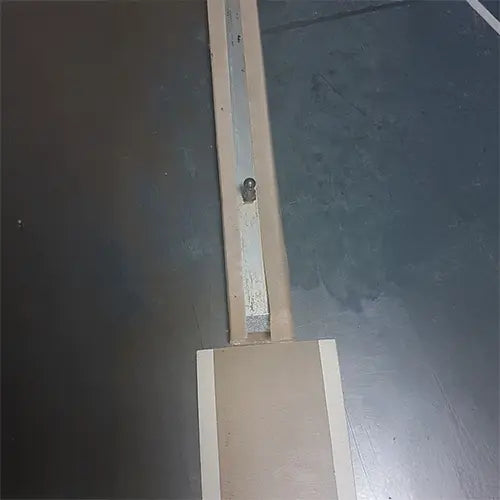

Here's an example of Adhesive Zoned Teflon Tape in use. We supply Adhesive Edged Teflon Tape to Sydney

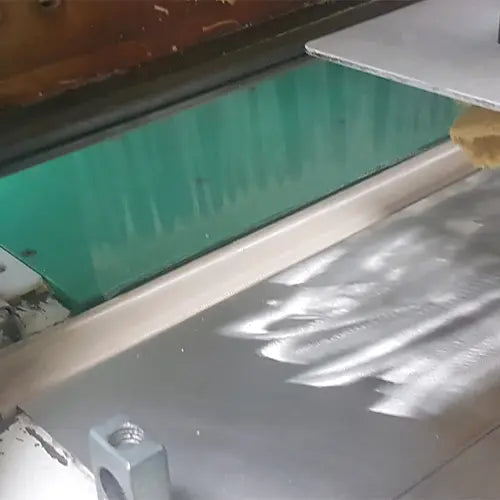

Zoned Teflon Tape in use
Teflon Adhesive Edged Zone Tape has custom sized strips of adhesive on the outer edges, leaving a non-adhesive free area in the middle.
Zoned Teflon Tape is designed to leave a non-adhesive free area in the middle of the tape.
An example of wide adhesive zones with a small non-adhesive area in the middle of this roll of Adhesive Zoned PTFE "Teflon" Tape
Contact Us for all YOUR adhesive zone Teflon - PTFE Tape Requirements
Teflon Adhesive Edged Zone Tape has custom sized strips of adhesive on the outer edges
We supply Adhesive edged PTFE / Teflon Tape ( Zoned Teflon Tape) to Wollongong, Sydney, Brisbane, Melbourne, Newcastle, Canberra, Adelaide, Hobart, Perth & right across Australia
Here's an example of Adhesive Zoned Teflon Tape in use. We supply Adhesive Edged Teflon Tape to Sydney
Zoned Teflon Tape in use

Teflon Tape With Adhesive Zones (Adhesive is on outside edges of Teflon Tape)

Teflon Tape With Adhesive Zones (Adhesive is only on the outside edges of tape) Teflon adhesive zone tape has custom sized strips of adhesive on the outer edges, leaving a non-adhesive “free zone” in the center. Adhesive Edged Teflon Zoned Tape is generally 5thou (.15mm) thick, we also supply in thicker grades. PTFE Teflon Zone Tape is primarily used in applications where it is not desirable for adhesive to come in contact with a heating element or it is necessary to cover an expensive component of a packaging machine such as silicone sponge or foam. Adhesive Edged Zone Teflon Tapes should also be considered in applications where PTFE-Glass fabric needs to be mechanically fastened to a surface. https://cdn.shopify.com/s/files/1/0683/0234/0205/files/teflon_tape_-_adhesive_both_ends_ae627447-fe0b-4571-a2b6-cba0b69c1c0a.jpg?v=1771460277 Contact Us for all of Your Adhesive Edged Teflon Tape Requirements
In stock
SKU: Teflon Tape With Adhesive Zones-Custom Size
Description

We supply Adhesive Edged Teflon Tape throughout Australia

Teflon adhesive edge tape has custom sized strips of adhesive on the outer edges, leaving a non-adhesive area in the centre of the roll. We customise Adhesive Zone PTFE Teflon Tape to any length. It is used across printing, manufacturing, engineering and packaging industries, and is also known by many names including PTFE tape, adhesive edged Teflon tape, PTFE zone tape, brown woven adhesive edged Teflon tape, adhesive edge or center-free teflon / PTFE tape and similar variations.

Adhesive Edged / Adhesive Zoned Teflon Tape

We supply Adhesive Edged Teflon Tape (Teflon Zone Tape) to Sydney, Canberra, Perth, Wollongong, Newcastle, Brisbane, Melbourne & right across Australia.

Contact Us for all of YOUR Teflon Adhesive Zone Tape Requirements

Teflon Tape with Adhesive Zones (adhesive only on outer edges)

Teflon adhesive zone tape features adhesive strips on both outer edges while leaving a central non-adhesive “free zone”. It is typically around 0.15mm (5 thou) thick, with thicker grades available.

PTFE glass fabric zone tape is used where adhesive must not contact heating elements or sensitive machine components such as silicone foam or sponge, and where mechanical fastening of PTFE fabric is required.

CONTACT US FOR ALL OF YOUR ADHESIVE EDGED TEFLON TAPE REQUIREMENTS

To find out pricing, we require:

  • Teflon tape thickness (e.g. 0.15mm / 5 thou)
  • Teflon tape width (e.g. 50mm, 75mm, 100mm)
  • Adhesive zone width on each side (e.g. 12mm each side)


Primary Applications

  • Heat Sealing & Packaging Machinery: Prevents molten plastic films and laminates from adhering to sealing jaws.

  • Embossing & Roller Wrapping: Keeps active embossing paths clean while securing tape edges tightly to the roll.

  • Impulse Sealers & Bag Makers: Extends the working lifespan of heating elements by keeping residue off active zones.

  • Textile & Composite Processing: Ideal for continuous heat presses where edge adherence is mandatory and center contact must remain pristine.
Reviews
FAQs

Frequently Asked Questions

What is Zoned Teflon Tape?

Zoned Teflon Tape is a specialised PTFE-coated fiberglass tape where the silicone pressure-sensitive adhesive is applied only to specific tracks or edges (the "zones"), leaving the middle section completely free of adhesive.

Why use adhesive edge Teflon tape instead of fully coated tape?

Fully coated tapes can leak adhesive when exposed to high heat, contaminating materials running down the center. Zoned tape anchors securely via its edges while ensuring the working surface remains completely clean and non-stick.

What temperatures can Zoned PTFE tape withstand?

Standard industrial grades safely handle continuous operating temperatures ranging from -73°C up to +260°C
